Lab 4

Oscilloscopes:

Tenima 72-3055

Tenima 72-6805

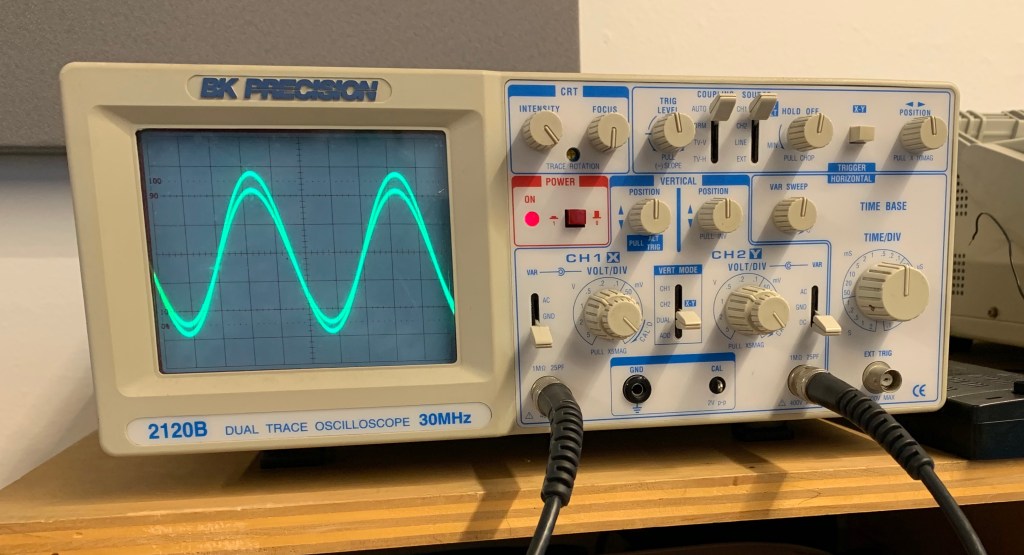

BK Precision

Oscilloscope controls:

Vertical (Volt/Div):

The vertical section adjusts the amplitude and of the signal in a vertical span.

Horizontal (Time/Div):

The horizontal section controls the amount of time per division represented horizontally on the screen.

Trigger:

Trigger controls allow you to stabilize repetitive waveforms and capture single waves.
